current location：home page > product > Wind Knife And Air Knife > SA-series stainless steel precision air knife > Airhank SA-25-S2
Product model:
SA-25-S2
Outside diameter of air inlet:
Width of air outlet:
Effective length:
Air inlet position:
Side / top / front
Number of air inlets:
1-4 individual
Texture of material:
SUS304 Mirror stainless steel
Service temperature :
-40 ~ 350℃
Sealing material :
Teflon
Air Knife form:
With partial pressure diversion, outlet drainage, adjustable blade
Withstand voltage:
2Kg/cm3
Inlet duct mode:
Hose joint, external thread joint, internal thread joint, quick assembly joint, welded smooth joint, elbow joint

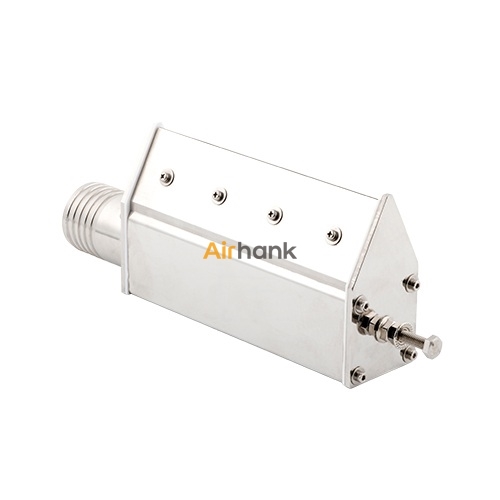

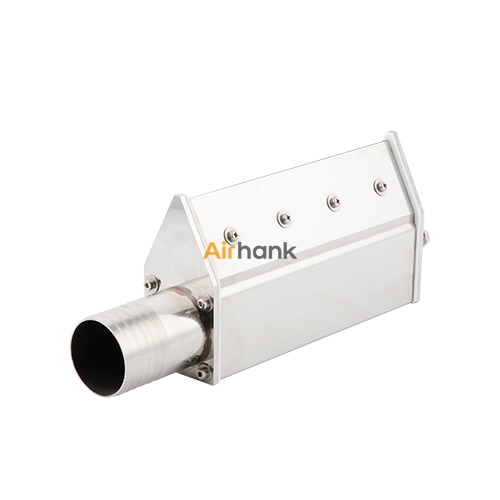

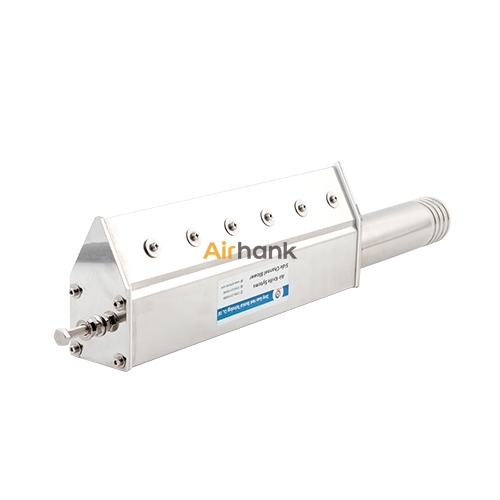

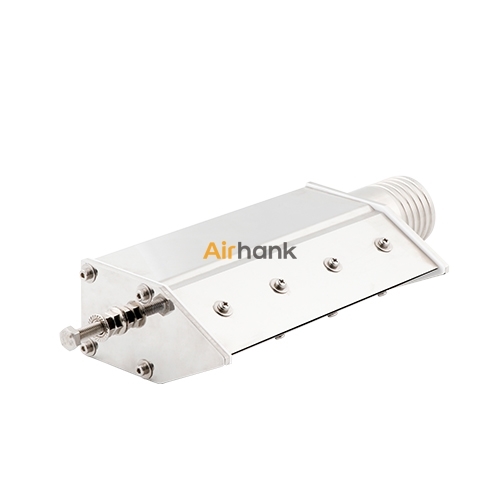

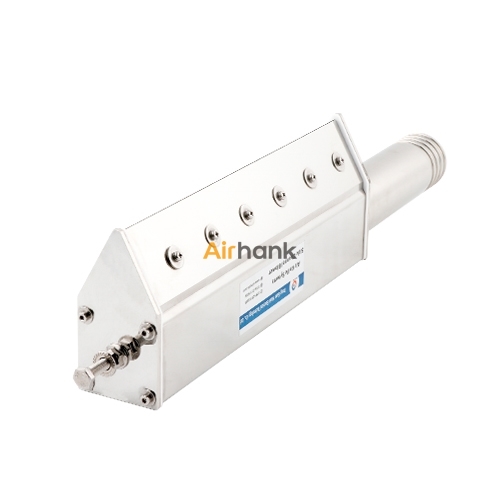

Airhank SA-25-S2
Data download
Data download
Characteristic curve
Performance data
1、Airhank stainless steel precision air knife model description, example: model formula: sa-1200-s2-25-1, set the order size as 1200mm, knife edge width as 1mm, side hose head air inlet, 2 air inlets, air inlet size as 25mm, air outlet size as 1mm.
2、When ordering, please pay attention to the effective length of the wind blade, which does not include the thickness of the end covers on both sides of the wind blade. The length of the wind blade ordered in the above case is 1200mm, which does not include the side end cover. The actual installation length is 1208mm.
3、For orders beyond the above data range, please call our company at 18028272226.
Technical drawings
